MONSTER TRUCK

Hyper MTE PLUS II

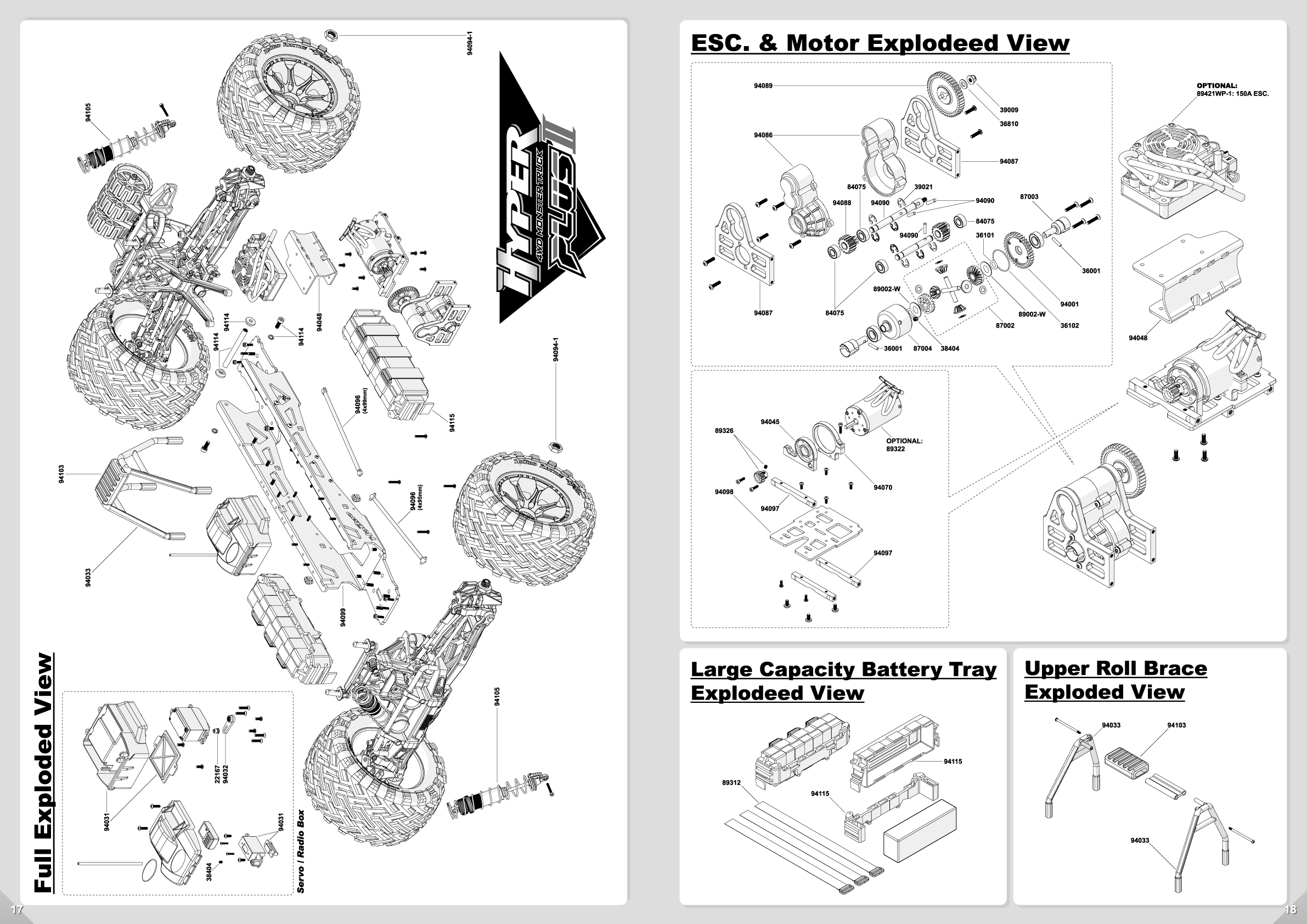

  DOWNLOAD Hyper MT Plus II Instruction Manual.pdf 20220801 HYPER PLUS2 exploded view(new Differential Outdrive Cup).jpg 20220801 HYPER PLUS2 exploded view(new Differential Outdrive Cup).pdf

View  video

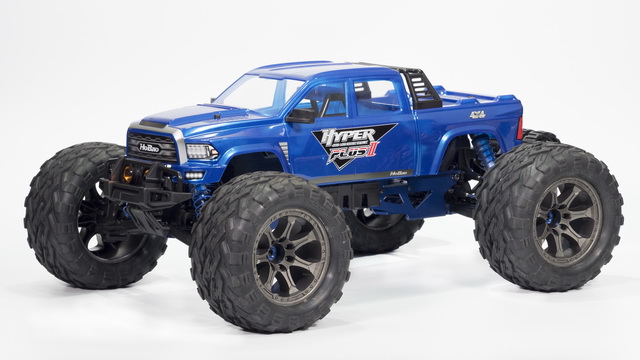

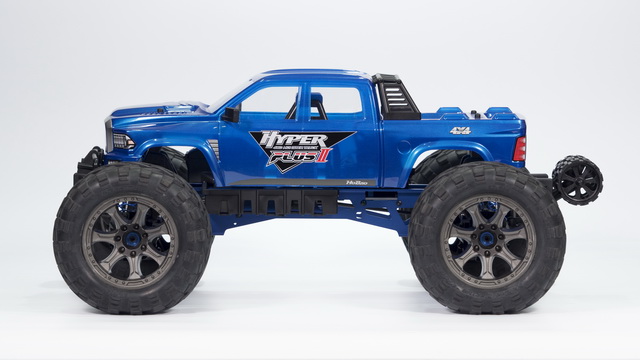

Hyper MT Plus II Monster Truck



[ELECTRIC EQUIPMENT]

  • Hobao 2.4GHz, 3-channel radio system
  • HobbyWing 150A ESC (4~6S) with 2 XT90 plug
  • 4 pole 2000Kv Brushless motor (5mm output  shaft)
  • Hobao 32kg-cm 7.4V High Torque/ High speed /water proof coreless digital servo with metal servo horn

[FEATURES]

  • All metal drive gears
  • Full-time 4-wheel drive
  • Center differential drive system
  • CNC Aluminum center differntial mount
  • CNC Aluminum motor mounting plate with supporting bars
  • CNC Aluminum motor mount with holder
  • New Wheelie Bar & Bumper

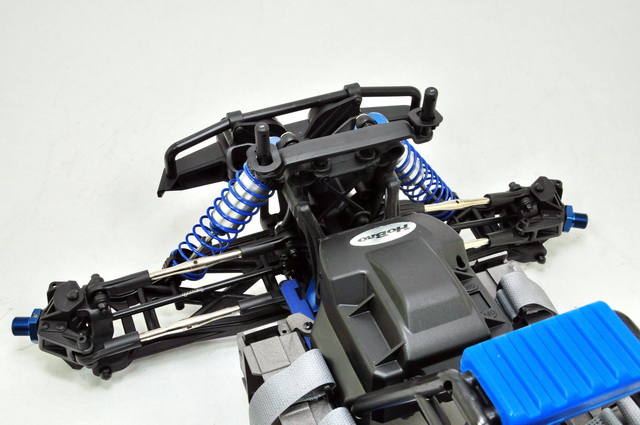

  • Aluminum Alloy Hydraulic Shock Absorbers with locking spring cup holder
  • Adjustable height shock spring perches
  • New Front/Rear High Torque Universal Joints with Differential outdrive cups.

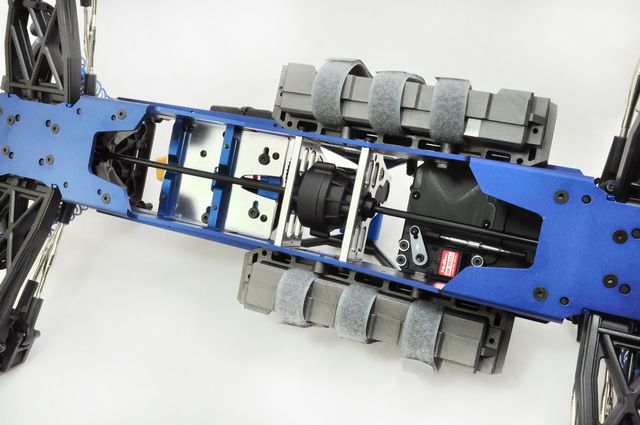

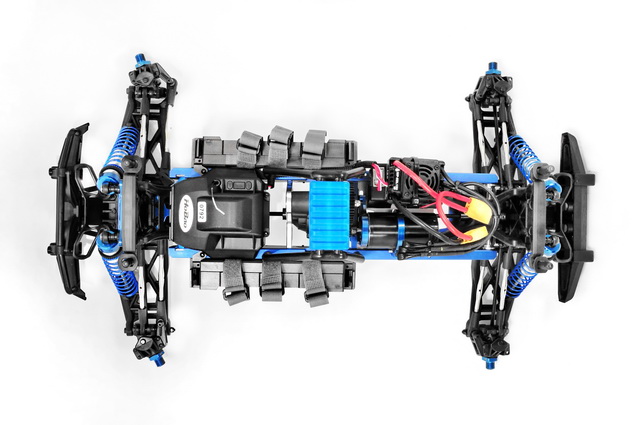

  • Enhance one piece aluminum chassis frame
  • Roller bar with new rubber handle

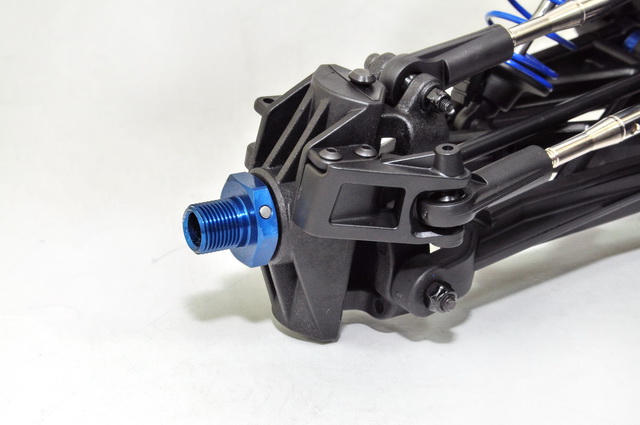

  • 20mm Wheel Hex hubs & 17mm Wheel nuts
  • Gray 7 spoke wheel with all terrain tires

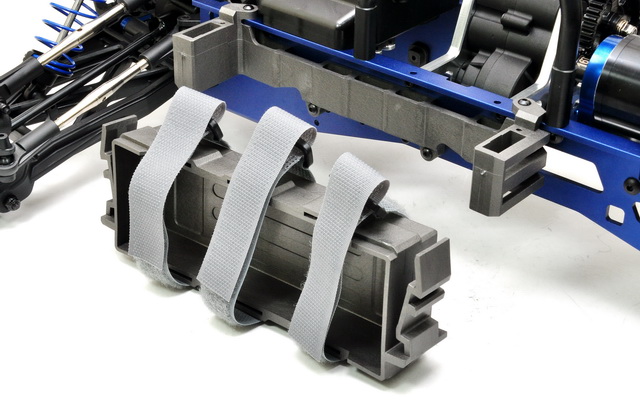

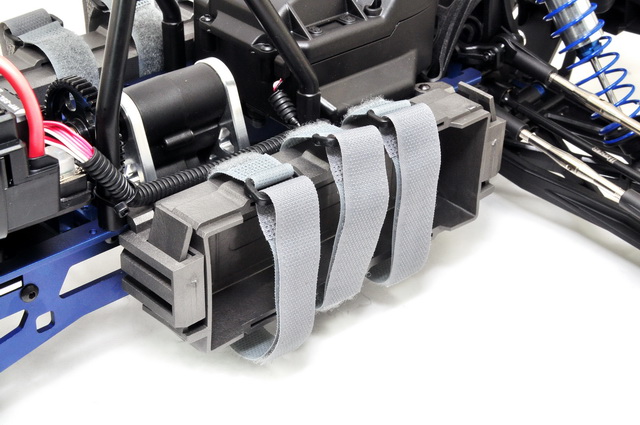

  • Large capacity receiver and battery box with quick release
  • Heavy duty steel differential, pinion, and transmission gears

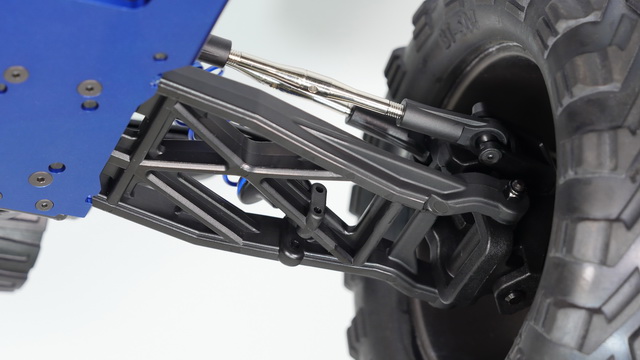

  • Symmetric front and rear suspension arms, carriers, and steering knuckles
  • Molded front and rear bumpers and skid plates

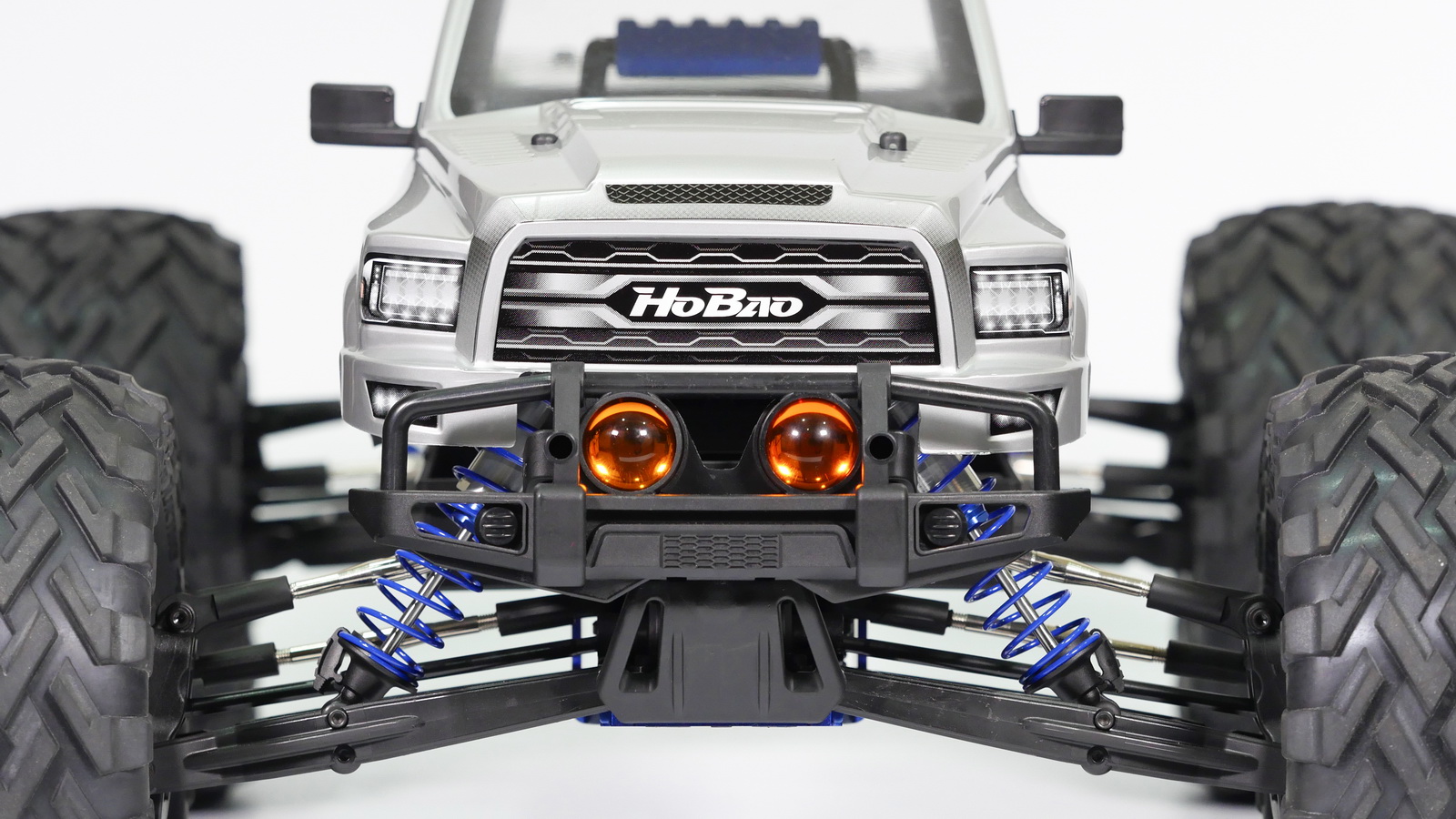

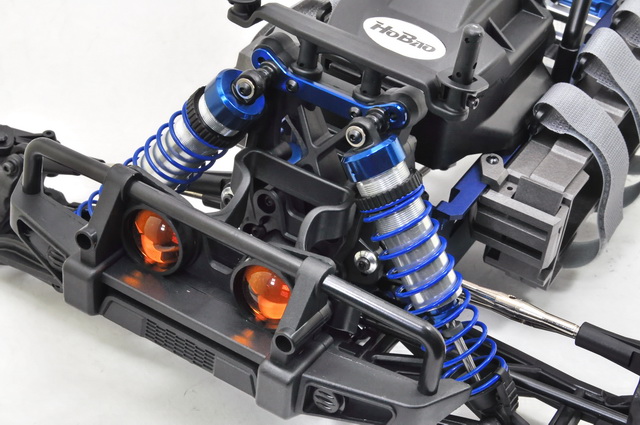

  • Front bumper headlights
  • New truck painted body and back rack
  • All bearing of RC Car

[SPECIFICATIONS]

  • Length : 700mm / 275.6 inches ( included Wheelie Bar )
  • Width : 510mm / 200.8 inches
  • Height : 280mm / 110.2 inches
  • Weight : 6.5 kg / 14.3 lbs ( without battery )
  • Wheelbase: 435mm / 169.3 inches ( longer 60mm around than MT Plus 60mm )
  • Tires : 197mm diameter, 105mm wide
  • Wheels : 102mm diameter, 76mm wide
  • Dimension after body shell mounting : 700x510x280mm

[RTR REQUIREMENTS]

  • 7.4V LiPo or 7.2V Ni-MH Batteries
  • Battery Charger



[80% ARR REQUIREMENTS]

  • ESC & Motor
  • Servo
  • Radio
  • 7.4V LiPo or 7.2V Ni-MH Batteries
  • Battery Charger



HB-MTE2              Hyper MTe Plus II  Monster Truck 80% Rolling Chassis w/Clear Bodyshell

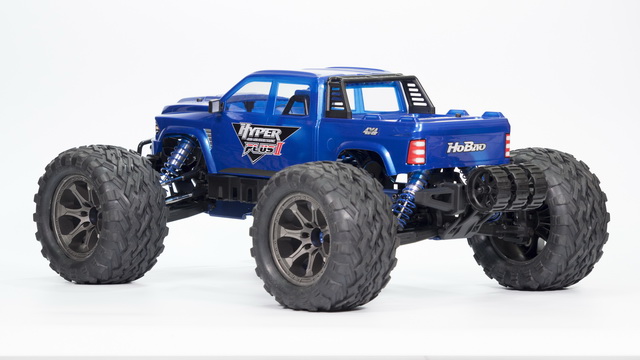

HB-MTE2-C150BU       Hyper MTe Plus II Monster Truck RTR w/Blue Bodyshell

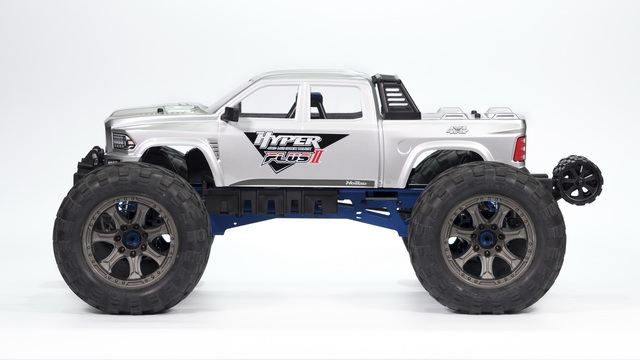

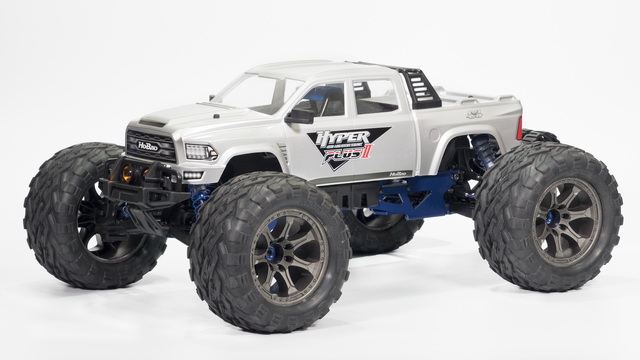

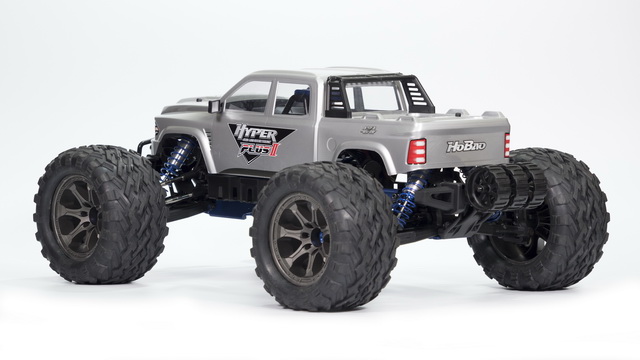

HB-MTE2-C150SV       Hyper MTe Plus II Monster Truck RTR w/ Siliver White Bodyshell
